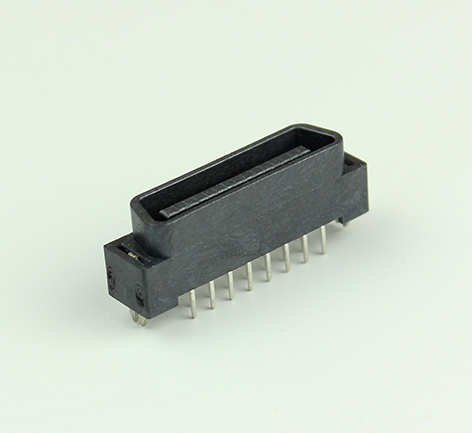

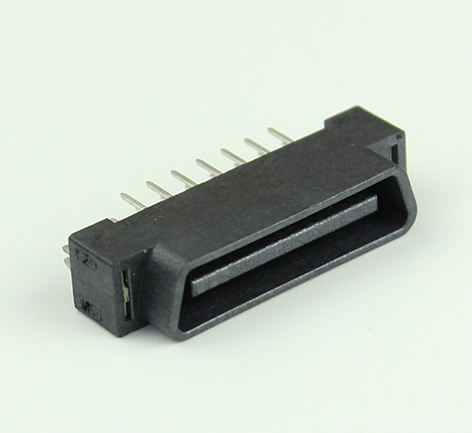

Zt02sg series

Ztec internal number: zt02-sg020s

Alternative to te internal products:

PCB connector assembly type: PCB mounting connector

PCB installation direction: vertical

Connector system: board to board

?Number of Positions?: 20

Center line (spacing): 1.27 mm [0.05 in]

Product type characteristics

PCB connector assembly type: PCB mounting connector

Connector system: board to board

· sealable ? no

Connector and terminal termination: printed circuit board

Structural characteristics

Stackable: no

Number of rows: 1

PCB installation direction: vertical

?Number of Positions?: 20

Electrical characteristics

?Operating Voltage?(VAC): 250

Insulation resistance ? (m Ω): 1

Subject characteristics

Connector shape: Standard

PCB retention characteristics electroplating materials: nickel backing tin plating

PCB retention material: Brass

Contact characteristics

Terminal base material: phosphor bronze

PCB terminal termination area electroplating material: Tin

Terminal base plate material: Nickel

Terminal shape and construction: single fork

Thickness of electroplating material in PCB terminal termination area: 1 μ m [39.4 μ in]

Electroplating material of terminal contact part: Gold

Thickness of electroplating material in terminal joint area: ? m ? [? 7.9 ? in ?]

Terminal type: Male

Terminal rated current (maximum) ? (a): 1

Contact length of terminal: 6.6 mm [0.259 in]

Terminal layout: in-line

Termination characteristics

3.1 ? mm ? [? 122 ? in ?]

PCB termination method: through hole welding

Mechanical accessories

Fixed type of PCB installation ?: fixed feet

· joint alignment ? with

· joint alignment type ?: polarization, polarization

PCB installation and fixation: with

Assembly alignment of PCB: without

Connector mounting type ?: board mounting

Usage environment

Operating temperature range: - 55 – 85 ? C ? [? - 67 – 185 ? f ?]
